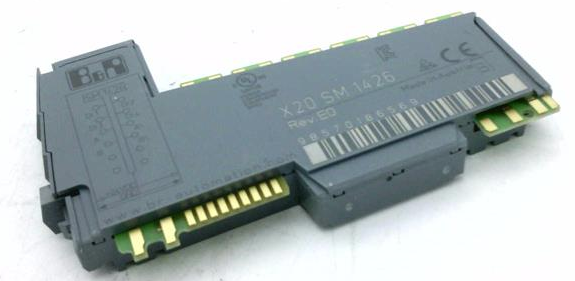

X20SM1426
$856.46
Available on backorder
Description
- 1 stepper motor, 24 VDC, 1 A (1.2 A peak)
- Resolution of current values at 1%
- Maximum, rated and holding current configured independent of each other
- 38.5 kHz PWM frequency
- Integrated motor detection
- 256 micro-steps
- Stall detection
- Complete integration in Automation Studio and CNC applications
- 4 inputs, 24 VDC, can be configured as ABR
- Ramp function model based on the CANopen communication profile DS402
- NetTime timestamp: Position change, trigger time
The stepper motor module is used to control stepper motors with a rated voltage of 24 VDC at a motor current up to 1 A (1.2 A peak). Additionally, this module has four digital inputs that can be used as limit switches or as encoder inputs.
