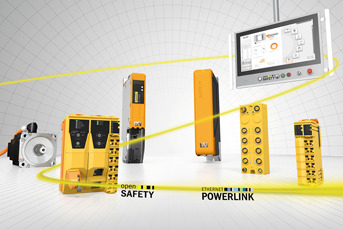

Safe shutdowns don’t necessarily mean a complete machine stoppage. A safe and intelligent response to various situations provides safety without halting production. B&R’s intelligent, decentralized, and integrated safety technology, with its very short response times, opens up a new range of safety concepts for machines and systems. A comprehensive selection of machine options, a programming-based rather than wired approach, safe maintenance and diagnostics, and secure system-wide communication combine to optimize both the flexibility and availability of machines and systems.
Inside the Electrical Cabinet
The X20 system is very compact, offers a wide range of different modules, and its 3-part modularity makes its wiring and maintenance particularly efficient.
Outside the electrical cabinet

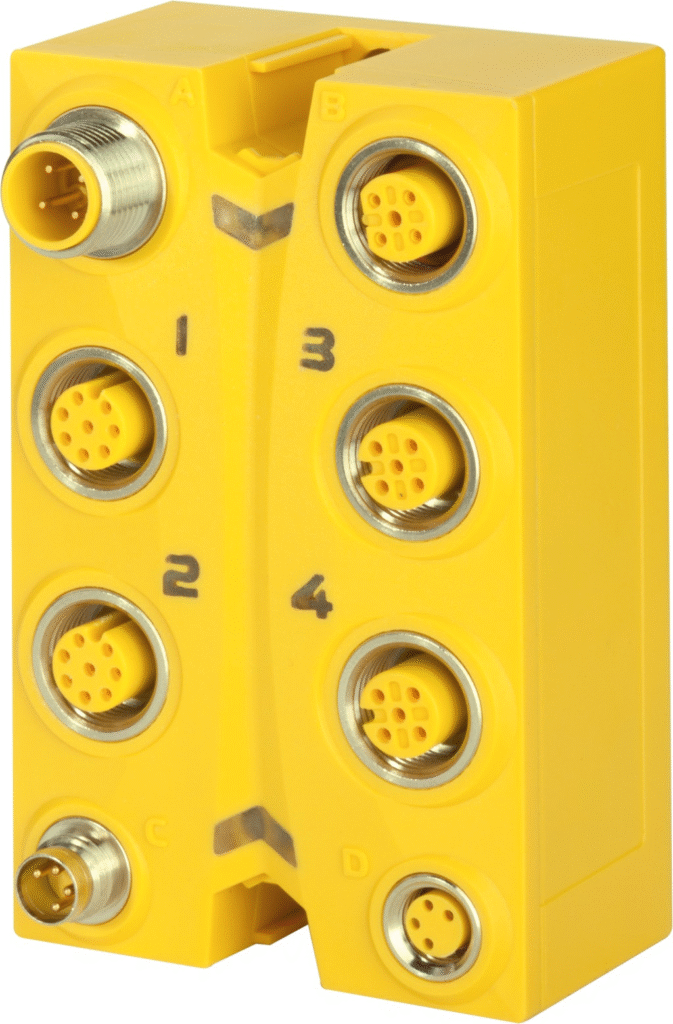

The X67 system is compatible with the X20 system, allowing modules to be combined as needed. Furthermore, the IP67 protection rating makes the modules ideal for harsh environmental conditions.
Driven by safety

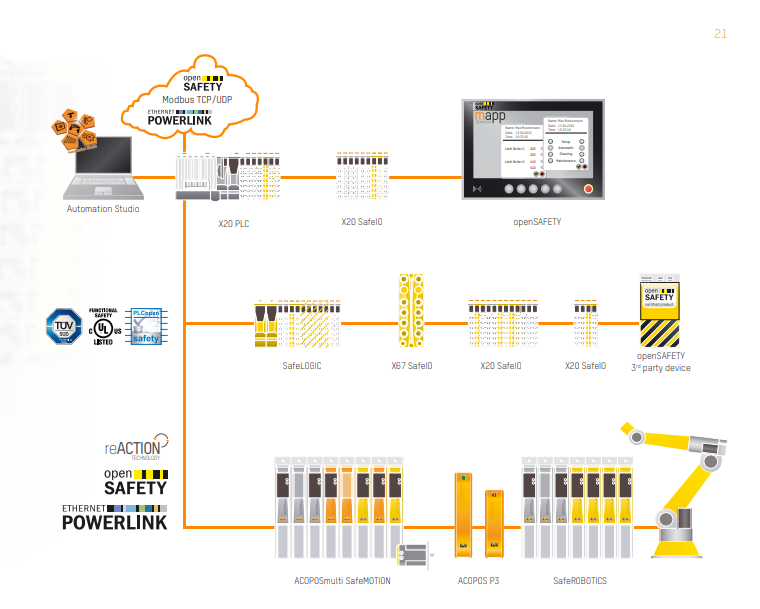

The SafeLOGIC safety controller is the brain of B&R’s integrated safety technology. It manages all core tasks. SafeLOGIC runs the safety application and is also responsible for parameter configuration and management.
High performance and deterministic
With cycle times starting at 800 µs, the SafeLOGIC series products are the fastest safety controllers on the market. Even complex applications with 100 safety modules and hundreds of signals can be implemented with cycle times below 10 ms. Fluctuation-free data exchange is possible via the POWERLINK real-time network.
